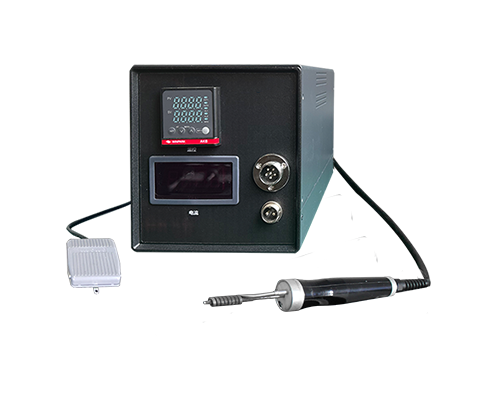

USE-60E Ultrasonic Soldering Iron

The ultrasonic soldering iron consists of a high performance sheath heater and transducer, supplying heat and ultrasonic oscillations to the tip. The ultrasonic soldering is implemented by the cavitation effect which breaks the oxide surface and eliminates bubbles in solder. Using the solder alloy, can easily solder directly to glass, ceramics and other low solderability materials. It has been widely used in soldering solar cell, LED, ITO glass etc materials.

• No surface pre-treatment required
• No flux, therefore, no post cleaning
• Gas-tight and heat-resistant up to 250°C
• Solder materials: glass, ceramics, aluminum, steel etc
• Stronger non-porous bonds between solder and material

• The 60kHz ultrasonic generator is housed in the main unit, the ultrasonic transducer is built into the soldering iron handle
• The temperature is controlled on the front panel and a digital readout indicates the bit temperature
  In solder trapped gases were removed by ultrasonic vibrations and a void-free soldering arises.
• Adjustable ultrasonic-power output
• Stable ultrasonic frequency with constant amplitude control and new feedback system for automatic-adjustment of resonance frequency

• Ultrasonic frequency: 60kHz±5kHz
• Ultrasonic power: 12W(max)
• Power requirements: AC100V/240V, 50/60Hz
• Max temperature: 400℃
• Display: Current, Temperature
• Dimensions: 255mm(W)*255mm(D)*120mm(H)
• Weight: 6kg

• Transducer: Langevin type (P.Z.T.) 60kHz
• Tip material: Special steel alloy
• Tip diameter: Φ1.0-4.0mm (custom made)
• Heater: High performance sheathed heater 65W
• Tip shape: Custom availble
• Dimensions: Φ36mm(max)*250mm
• Weight: 210g

• Ultrasonic generator x1
• Soldering iron tip x1
• Power cord x1
• Foot Switch x1
• Soldering iron stand x1
• Fuse x2
• Spanner for changing tip x1
• A sample package of active solder alloy
• Users manual (USE-60E)
