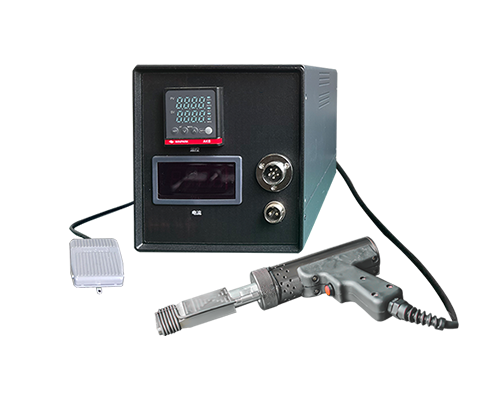

USE-28E Ultrasonic Soldering Iron

USE-28E Ultrasonic Soldering Iron

Regular price $4,600.00
Regular price $4,600.00 Sale price $4,600.00
Sale Sold out
Shipping calculated at checkout.
View full details

Let's get into the nitty gritty details.

Describe

The ultrasonic soldering iron consists of a high performance sheath heater and transducer, supplying heat and ultrasonic oscillations to the tip. The ultrasonic soldering is implemented by the cavitation effect which breaks the oxide surface and eliminates bubbles in solder. Using the solder alloy, can easily solder directly
to glass, ceramics and other low solderability materials. It has been widely used in soldering glass, sputtering targets, stainless steel etc.

  • No surface pre-treatment required
  • No flux, therefore, no post cleaning
  • Gas-tight and heat-resistant up to 250°C
  • Solder materials: glass, ceramics, aluminum, steel etc
  • Stronger non-porous bonds between solder and material

Feature

  • The 28kHz ultrasonic generator is housed in the main unit, the ultrasonic transducer is built into the soldering iron handle
  • The temperature is controlled on the front panel and a digital readout indicates the bit temperature
  • In solder trapped gases were removed by ultrasonic vibrations and a void-free soldering arises.
  • Adjustable ultrasonic-power output
  • Stable ultrasonic frequency with constant amplitude control and new feedback system for automatic-adjustment of resonance frequency

Generator Parameter

  • Ultrasonic frequency: 28kHz±5kHz
  • Ultrasonic power: 70W(max)
  • Power requirements: AC100V/240V, 50/60Hz
  • Max temperature: 400℃
  • Display: Current, Temperature
  • Dimensions: 255mm(W)*255mm(D)*120mm(H)
  • Weight: 6kg

Iron Parameter

  • Transducer: Langevin type (P.Z.T.) 28kHz
  • Tip material: Special steel alloy
    Tip diameter: 50*10mm (Std.)(custom made)
  • Heater: High performance sheathed heater 200W
  • Tip shape: Custom availble
  • Dimensions: Φ45mm(max)*329mm
  • Weight: 510g

Package Including

  • Ultrasonic generator x1
  • Soldering iron with 50*10mm tip x1
  • Power cord x1
  • Foot Switch x1
  • Soldering iron stand x1
  • Fuse x2
  • Spanner for changing tip x1
  • A sample package of active solder alloy
  • Users manual (USE-28E)
